首 页 > 合金一体成型电感 > > MDA(车用)

合金一体成型电感

MDA(车用)

FEATURES

?Shielded construction

?Capable of corresponding high frequency

?Low loss realized with low DCR

?High performance (Isat) realized by metal dust core

?Ultra low buzz noise, due to composite construction

?100% Lead(Pb)-Free and RoHS compliant

?AEC-Q200 qualified

?Operating temperature: -55 °C  to +155 °C


APPLICATION

?Headlamps, tail lamps and interior lighting

?HVAC

?Doors, window lift and seat control

?Audio subsystem

?Digital instrument cluster

?In-Vehicle Infotainment and navigation

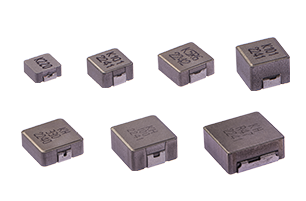

MDA
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)

鼓和电流(A)

直流电阻(mΩ)文件下载
image.pngMDA2520102.5*2.0*0.80.33~10.01.2~6.61.6~7.613.0~490.0下载
MDA4020.pngMDA40204.45*4.1*1.80.1~10.02.4~16.02.1~26.02.9~165.0下载
1670317815996692.pngMDA5030

5.7*5.2*2.8

0.2~15.02.9~14.02.2~20.03.6~140.0下载
image.pngMDA5030-T5.7*5.2*2.80.05~0.0840.0~46.050.0~68.00.57~0.68下载
1670317824245113.pngMDA70307.1*6.6*2.80.15~47.01.5~30.02.0~40.01.7~318.0下载
7040.pngMDA70407.0*6.6*3.80.68~47.0
1.8~17.0
2.5~19.04.8~320下载
-MDA7050.pngMDA70507.3*6.6*4.81.00~47.02.6~17.01.8~16.05.6~275.0下载
MDA1040.pngMDA104011.0*10.0*3.80.15~68.02.6~44.03.2~82.00.5~192.0下载
1676258511917050.pngMDA105011.0*10.0*4.80.36~47.04.5~34.04.0~52.00.82~106.0下载
MDA1350-01.pngMDA135013.5*12.6*4.70.22~68.04.3~55.05.0~65.00.5~95.0下载
MDA1350-01.pngMDA136013.5*12.6*5.70.36~47.05.2~60.06.7~70.00.65~76.0下载
MDA1365.pngMDA136513.5*12.6*6.20.47~68.05.8~42.06.0~68.00.88~82.0下载
1676258577972758.pngMDA187017.8*16.9*6.70.47~82.06.5~60.08.0~110.00.7~69.0下载
MiMouseShot20240522145810.pngMDA231323.5*22.0*12.61.00~10011.0~70.0
9.0~60.0
0.8~36下载
